[NCP] Terraform을 활용한 NCP(VPC) - Server(2), LB(1), Auto scaling Group(1), NAS(1) 구성

개요

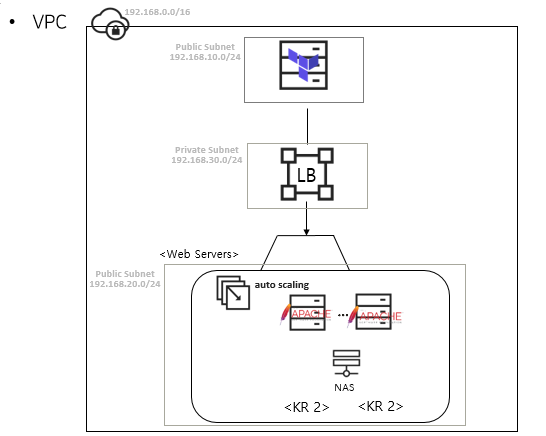

Terraform을 활용에 VPC버전에서 NCP의 Server, LB , NAS 생성과 Server에는 Apache를 설치하는 코드입니다. NAS는 생성과 동시에 mount를 하여 서버접속시 바로 이용할 수 있을 수 있습니다. 아키텍처는 다음과 같습니다.



[main.tf]

provider "ncloud" {
  support_vpc = true
  access_key = var.access_key
  secret_key = var.secret_key
  region     = var.region
}

resource "ncloud_login_key" "key" {
  key_name = var.login_key_name
}

data "ncloud_root_password" "rootpwd" {
  count                     = "2"
  server_instance_no        = ncloud_server.server[count.index].id
  private_key               = ncloud_login_key.key.private_key
}

data "ncloud_vpc" "selected" {
  id = "7917"
}

resource "ncloud_network_acl" "nacl" {
   vpc_no         = data.ncloud_vpc.selected.id
   name           = "terr-acl"
   description    = "for test"
}

resource "ncloud_subnet" "subnet" {
  count = "2"
  vpc_no         = data.ncloud_vpc.selected.id
  subnet         = var.subnets[count.index]
  zone           = var.zones
  network_acl_no = ncloud_network_acl.nacl.id
  subnet_type    = var.subnet_types[count.index]
  name           = var.subnet_names[count.index]
  usage_type     = var.subnet_usage[count.index]
}

resource "ncloud_init_script" "init" {
  name    = "httpd-install"
  content = "#!/bin/bash\nyum -y install httpd\nsystemctl enable --now httpd\necho $HOSTNAME >> /var/www/html/index.html"
}

resource "ncloud_access_control_group" "acg" {
  name        = "terra-acg"
  description = "description"
  vpc_no      = data.ncloud_vpc.selected.id
}

resource "ncloud_access_control_group_rule" "acg-rule" {
  access_control_group_no = ncloud_access_control_group.acg.id

  inbound {
    protocol    = "TCP"
    ip_block    = "0.0.0.0/0"
    port_range  = "22"
    description = "accept 22 port"
  }

  inbound {
    protocol    = "TCP"
    ip_block    = "0.0.0.0/0"
    port_range  = "80"
    description = "accept 80 port"
  }

  outbound {
    protocol    = "TCP"
    ip_block    = "0.0.0.0/0"
    port_range  = "1-65535"
    description = "accept 1-65535 port"
  }
}

resource "ncloud_network_interface" "nic" {
  count = "2"
	name                  = "terra-nic-${count.index+1}"
	subnet_no             = ncloud_subnet.subnet[0].id
	private_ip            = var.ni_pi[count.index]
	access_control_groups = [ncloud_access_control_group.acg.id]
}

resource "ncloud_server" "server" {
  count                       = "2"
  subnet_no                   = ncloud_subnet.subnet[0].id
  name                        = "ncloud-terraform-test-vm-${count.index+1}"
  server_image_product_code   = var.server_image_product_code
  server_product_code         = var.server_product_code
  description                 = "terraform-vm-${count.index+1} is best tip!!"
  login_key_name              = ncloud_login_key.key.key_name
  init_script_no              = ncloud_init_script.init.id
  network_interface   {
    network_interface_no = ncloud_network_interface.nic[count.index].id
    order = 0
  }
}

resource "ncloud_public_ip" "pi" {
  count = "2"
  server_instance_no = ncloud_server.server[count.index].id
  description        = "terra-IP"
 }

resource "ncloud_nas_volume" "nas" {
  volume_name_postfix            = var.nasname
  volume_size                    = "500"
  volume_allotment_protocol_type = "NFS"
  server_instance_no_list        = [ncloud_server.server[0].id, ncloud_server.server[1].id]
}

#LB Targetgroup
resource "ncloud_lb_target_group" "tg" {
  name = "terra-tg"
  vpc_no   = data.ncloud_vpc.selected.id
  protocol = "HTTP"
  target_type = "VSVR"
  port        = 80
  description = "for test"
  health_check {
    protocol = "HTTP"
    http_method = "GET"
    port           = 80
    url_path       = "/"
    cycle          = 30
    up_threshold   = 2
    down_threshold = 2
  }
  algorithm_type = "RR"
}

#LB targetgorup attachment
resource "ncloud_lb_target_group_attachment" "att" {
  target_group_no = ncloud_lb_target_group.tg.id
  target_no_list = [ncloud_server.server[0].id, ncloud_server.server[1].id]
}

#LB
resource "ncloud_lb" "lb" {
  name  = "jslee-LB"
  network_type = "PUBLIC"
  type = "APPLICATION"
  subnet_no_list = [ncloud_subnet.subnet[1].id]
}

resource "ncloud_lb_listener" "listener" {
  load_balancer_no = ncloud_lb.lb.id
  protocol = "HTTP"
  port = 80
  target_group_no = ncloud_lb_target_group.tg.id
}

#Auto scaling - launch_configuration
resource "ncloud_launch_configuration" "lc" {
  name = "jslee-lc"
  server_image_product_code = var.server_image_product_code
  server_product_code = var.server_product_code
  login_key_name = var.login_key_name
  init_script_no            = ncloud_init_script.init.id
}

#Auto scaling - auto_scaling_group
resource "ncloud_auto_scaling_group" "asg" {
  name = "jslee-acg"
  subnet_no = ncloud_subnet.subnet[0].id
  access_control_group_no_list = [ncloud_access_control_group.acg.id]
  launch_configuration_no = ncloud_launch_configuration.lc.id
  min_size = 0
  desired_capacity = 0
  max_size = 3
  target_group_list = [ncloud_lb_target_group.tg.target_group_no]
  default_cooldown = "300"
  health_check_type_code = "LOADB"
  health_check_grace_period = "300"
  wait_for_capacity_timeout = "0"

}

#auto_scaling_policy
resource "ncloud_auto_scaling_policy" "policy" {
  count = "2"
  name = var.auto_scaling_policy_name[count.index]
  adjustment_type_code = "CHANG"
  scaling_adjustment = var.scaling_adjustment[count.index]
  auto_scaling_group_no = ncloud_auto_scaling_group.asg.auto_scaling_group_no
}

resource "null_resource" "ssh" {
 count = "2"
 connection {
    type     = "ssh"
    host     =  ncloud_public_ip.pi[count.index].public_ip
    user     = "root"
    port     = 22
    password = data.ncloud_root_password.rootpwd[count.index].root_password
  }

   provisioner "remote-exec" {
    script = "./mount.sh"
  }

provisioner "remote-exec" {
    inline = [
    "echo 'redhat' | passwd --stdin root",
    "mount -t nfs ${var.nasserver}:/${ncloud_nas_volume.nas.name} /mnt/nas" ,
    "df -h",
    ]
  }
}





[variables.tf]

variable "access_key" { # export TF_VAR_access_key=...
  default =
}

variable "secret_key" { # export TF_VAR_secret_key=...
  default = "
}

variable "region" {
  default = "KR"
}

variable "zones" {
  default =  "KR-2"
}

# centos- 7.3-64
variable "server_image_product_code" {
  default = "SW.VSVR.OS.LNX64.CNTOS.0703.B050"
}

# HDD : CPU 2 ,Memory 4GB , Disk 50GB
variable "server_product_code" {
  default = "SVR.VSVR.HICPU.C002.M004.NET.HDD.B050.G002"
}

variable "login_key_name" {
  default = "terra-key"
}

variable "auto_scaling_policy_name" {
  type = list
  default = ["increase-policy", "decrease-policy"]
}

variable "scaling_adjustment" {
   type = list
   default = ["1", "-1"]
}

variable "subnets" {
  type = list
  default = ["192.168.20.0/24" , "192.168.30.0/24"]
}

variable "subnet_types" {
  type = list
  default = ["PUBLIC" , "PRIVATE"]
}

variable "subnet_names" {
  type = list
  default = ["terra-dev-pub" , "terra-dev-pri"]
}

variable "subnet_usage" {
  type = list
  default = ["GEN" , "LOADB"]
}

variable "ni_pi" {
  type = list
  default = ["192.168.20.6" , "192.168.20.7"]
}

variable "nasname" {
  type = string
  default = "jslee"

}

variable "nasserver" {
  type = string
  default = "169.254.82.80"
}



[version.tf]

terraform {
  required_version = ">= 0.13"
  required_providers {
    ncloud = {
      source = "terraform-providers/ncloud"
    }
    null = {
      source = "hashicorp/null"
    }
    random = {
      source = "hashicorp/random"
    }
  }
}



[mount.sh]

#!/bin/bash

yum -y install nfs-utils
systemctl start rpcbind.service
systemctl enable rpcbind.service
mkdir /mnt/nas



*확인 사항

- nasserver IP는 mount할 때 필요하기 때문에 NAS 생성을 해본 후 NAS IP를 변수파일에 적는 식으로 하였다.

- VPC에서 Server를 생성할 때 ACG를 지정해주고 싶으면, 먼저 NIC를 생성하고 NIC에 ACG를 붙인 후 그 NIC를 Server에 지정해주는 방법 밖에 없는 것 같다.

- Auto Scaling Group을 생성할 때 Target Group으로 지정해줘야 한다. 즉 Target Group 먼저 생성한 후, Autoscaling을 생성한다. (LB또한 마찬가지다.)



*참고

https://github.com/NaverCloudPlatform/terraform-provider-ncloud/tree/master/docs

GitHub - NaverCloudPlatform/terraform-provider-ncloud: Terraform NaverCloud provider
